SUPPRESSOR INTERFACE | QUELL K-MOUNT | 14.5" BARREL | 5/8"x24

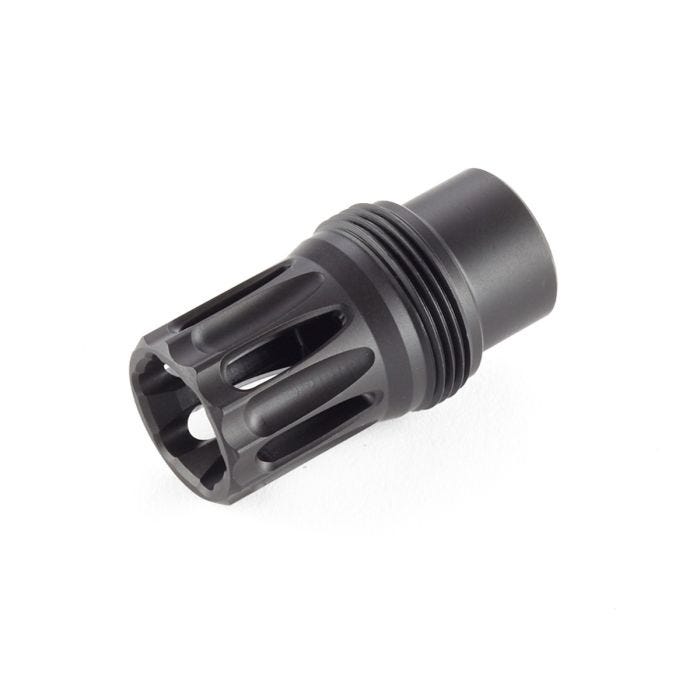

The Wilson Combat 5/8" x 24 QUELL "K-mount" interface is designed to function as flash hider without a suppressor attached, or to provide a quick attach/detach point for the Wilson Combat QUELL suppressor. This version is designed for 14.7" barreled rifles where a pinned and welded flash hider is required to achieve an overall barrel length of 16".
Installing the Wilson Combat 6.8 SPC/.30 caliber QUELL "K-Mount" muzzle interface is effortless with a standard 7/8”, 12-point socket wrench. Its black nitride finish offers extraordinary reductions in flash comparable to that of an M16A1 flash hider, making it one of the most efficient and effective muzzle mounts available today.- and all without needing any additional suppressor! This highly efficient interface is mandatory for use when connecting your Quell suppressor system.
- Caliber: 6.8 SPC/.30 Cal
- Thread Pitch: 5/8" x 24
- Finish: Black Nitride
- Reduces recoil and muzzle rise effectively
- This version is designed for 14.7" barreled rifles where a pinned and welded flash hider is required to achieve an overall barrel length of 16"
K-Mount Muzzle Device Installation:
With your rifle unloaded and its barrel supported from twisting in a vise or with an installation tool, install the appropriate K-Mount with finger pressure only to make sure it will smoothly thread on. If the K-Mount screws on smoothly by hand, you can now install to 20 foot-pounds MAX using a 7/8" 12-point socket attachment on a calibrated torque wrench inserted in the muzzle end. For a semi-permanent installation that is also heat-resistant, apply Rocksett on the barrel threads prior to installation.
| Caliber | 300 HAM'R, 300 Blackout, .308 Winchester, 7.62mm NATO, 7.62x39mm Russian, 7.62x40 WT |
|---|---|
| Manufacturer | Wilson Combat |
| Suppressor Type | Interfaces and Parts |
